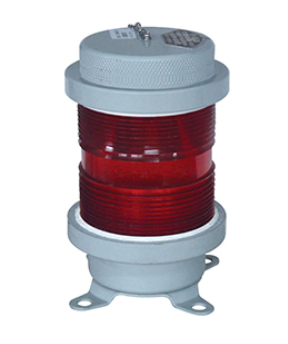

Description
This series of signal light is used for light signal at night navigation for vessels length 12-50 meters.
Features
- Type Approved for Vessels lenght in 12 to 50 Meters
- Highly reliable, virtually no maintenance required
- Easy for installation and wiring
Standards
EU 2022/1157 MED/6.1
COLREG 71 as amended, Annex 1/14
IMO Res. A.694 (17)
IMO Res. MSC.253(83)
Approved to:
COLREG72,EN14744,IEC 60945,IACS E10,M.E.D.,CCS
Technical Specification:
| Description | Starboard | Port light | Masthead light | Stern light | All-round light | NUC light | Anchor light |
| Model | CXHL1-1A | CHXL2-1A | CXHL3-1A | CHXL4-1A | CXHL6-1A | ||
| Power | 3W | 3W | 5W | 3W | 3W | 3W | 3W |
| Voltage/Frequency | DC24V | ||||||
| Horizontal optical arc | 112.5° | 112.5° | 225° | 135° | 360° | 360° | 360° |
| Visible distance | 2n.m | 2n.m | 5n.m | 2n.m | 2n.m | 2n.m | 2n.m |
| Enclosure | IP56 | ||||||
| Weight | 1.2Kg | 1.2Kg | 1.2Kg | 1.2Kg | 1.1Kg | 1.1Kg | 1.1Kg |
| Light shade color | Green | Red | White | Red/White/Yellow | White/Yellow/Green | Red | White |
