Description

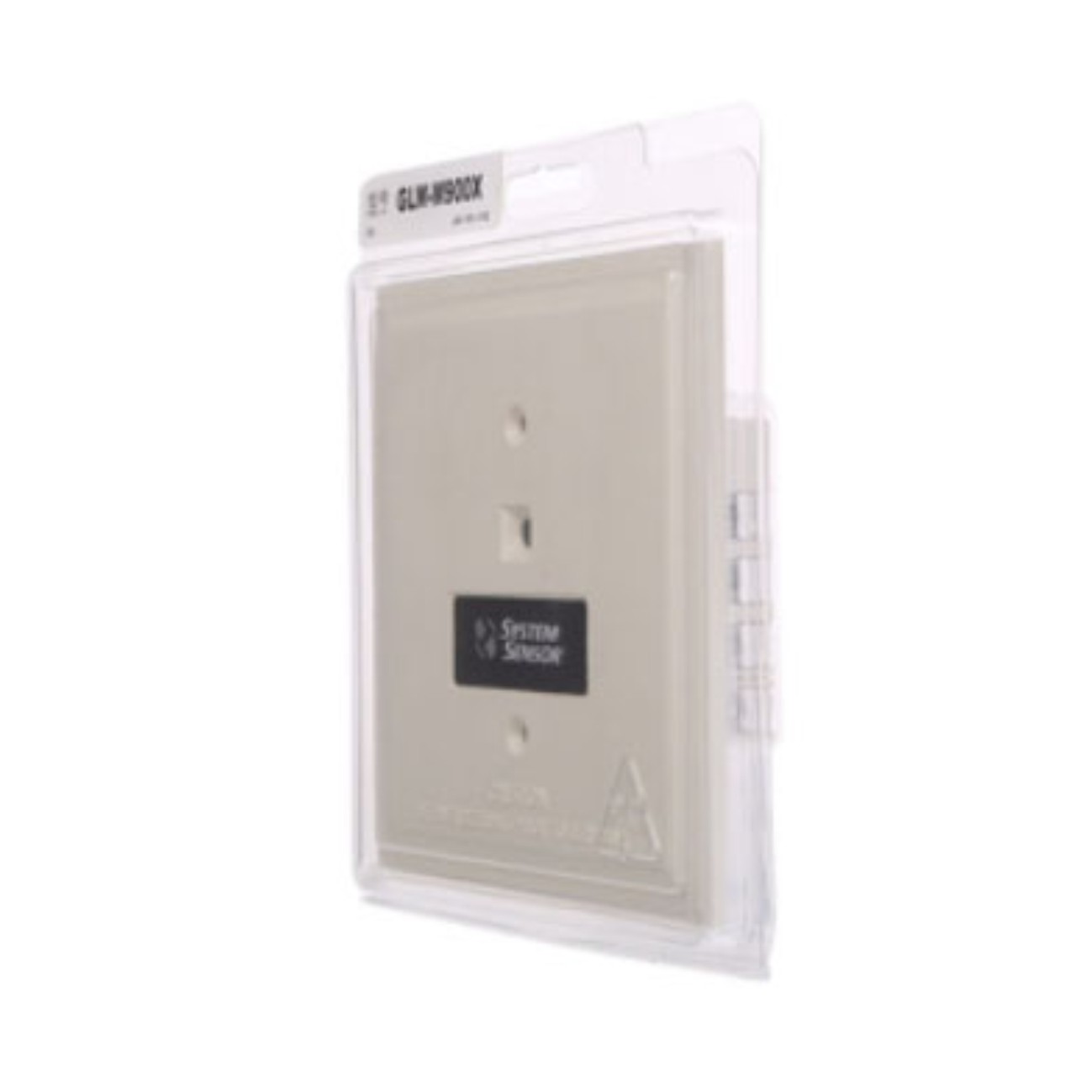

The GLM-M900X Isolated module provides protection against short circuits. When it detects a short circuit on the loop, it will disconnect the outgoing side of the module to prevent the short from affecting the rest of the loop. The rest of the circuit work normally. There is a LED indicator on the module. When the module is shorted, the LED will light constantly. Once the short is removed, it will restore to a cleared condition automatically.
Features:
- Easy to install, Easy to use.
- Protect the loop when short circuit
- Simple wiring
- Simple maintenance
- Low fault rate
- Reliable and cost-effective
Technical Data:
| Operating Temperature Range | -10°C～50°C |
| Operating Humidity Range | 5% ～ 95% Relative Humidity, Non-condensing |
| Protection voltage | ≤1.5VDC |
| Restore voltage | ≥3V |
| Material | Flame retardant ABS |
| Weight | About 50g |
| IP Class | IP44 |
Outline Drawing:
