Description
The power box is connected to the general emergency alarm controller. It can supply the power for general emergency alarm controller and output power for bells.
Features:
- Main power / emergency power automatic change-over
- Power failure alarm
- Relay box power output for bells
- 6 zones bells to output. Each zone max. current is 10A
System Drawing:
Technical Data:
| Operating temperature | -40° to 70° C / -40° to 158 ° F |
| Storage temperature range | -40° to 70° C / -40° to 158 ° F |
| Relative humidity | < 95% not condensing |
| Power supply | AC220V/DC24V, suitable for DC24V alarms;AC220V/AC220V, suitable for AC220V alarms |
| Color | Grey |
| IP Class | IP22 |
| Weight | 15Kg |
| Material | Carbon steel |

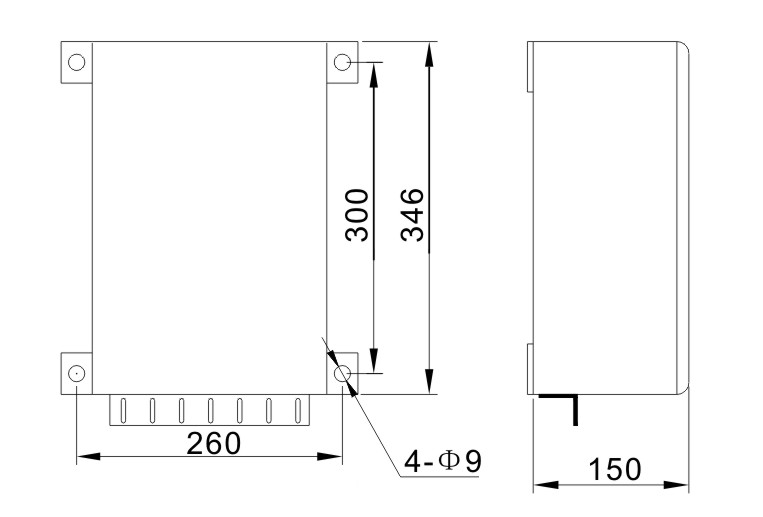

Outline Drawing:
