Description

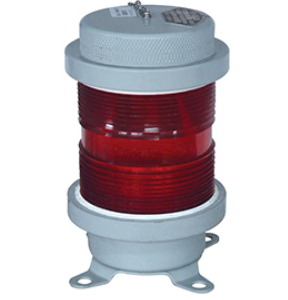

This series of signal light is used for light signal at night navigation for vessels length more than 50 meters.
Features
- Type Approved for Vessels more than 50 Meters in Length
- Highly reliable, virtually no maintenance required
- Easy for installation and wiring
Standards
EU 2022/1157 MED/6.1
COLREG 71 as amended, Annex 1/14
IMO Res. A.694 (17)
IMO Res. MSC.253(83)
Approved to:
COLREG72,EN14744,IEC 60945,IACS E10,M.E.D.,CCS
Technical Specification:
| Operating temperature | -30° to 55° C |
| Storage temperature range | -30° to 55° C |
| Relative humidity | < 95% not condensing |
| Rated voltage | 24V/110V/220V |
| Power | 2X65W |
| Light source | incandescent lamp |
| Light holder | P28S |
| Level arc | 135° |
| Vertical arc | +/-5° |
| Visibility | 3n.m |
| Cable outside diameter | Φ8- Φ10 |
| Installation method | Seat |
| Light body material | PA+GF High-strength engineering plastic |
| Light shade material | PC Engineering plastic |
| Light color | White/Yellow |
| Protection class | IP56 |
| Weight | 3.2Kg |
Dimension size
