Description

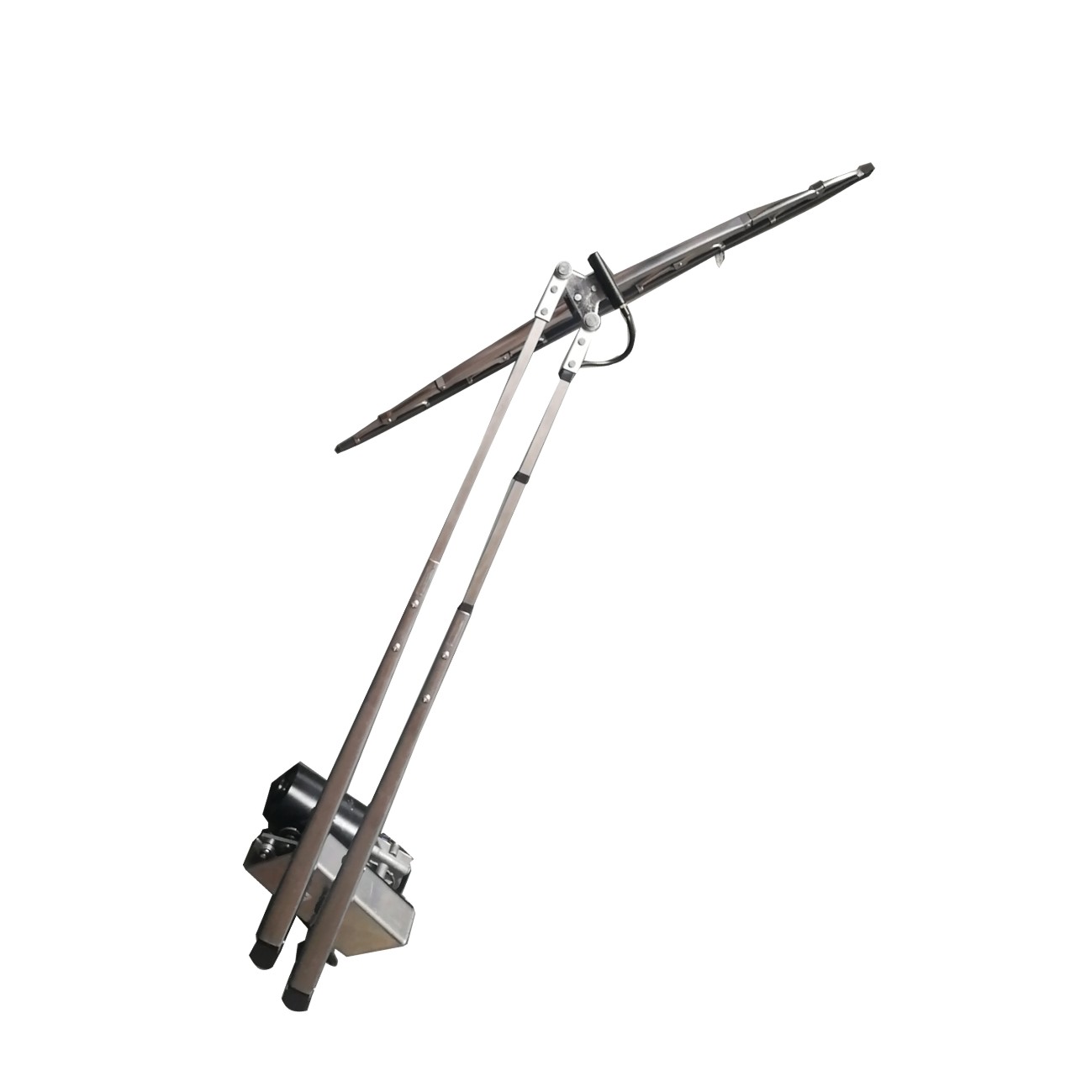

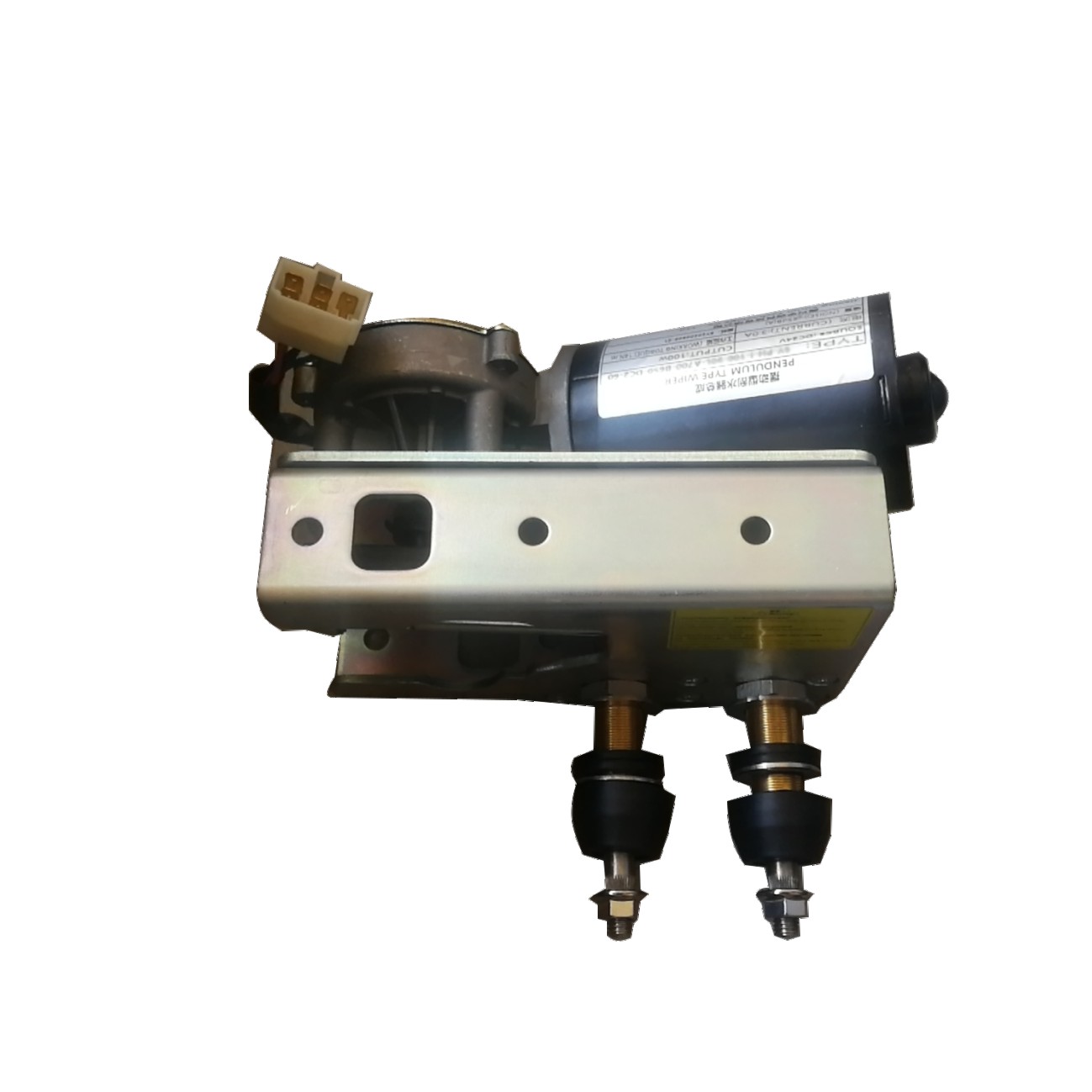

WGP Marine Pendulum Wiper are suitable for harsh marine conditions when fog and rain reduce visibility. It can protects you while being utterly transparent in view. A typical wiper systems contains high-performance motors, durable blades, innovative arms, controls and washing systems.

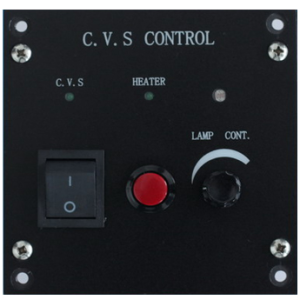

The wiper systems are operated from the control panel. From the control panel, the wipers are switched on and off, and the wiper speed and intermittent settings are adjusted.
Different boats require different kinds of wipers. We can provide solutions for different requirements.
Features:
- Easy to install, Easy to use.
- Suitable for all ship categories
- Resistance to marine conditions
- Fully adjustable wiper arm
- Robust and smart design
- Resistance to marine conditions
- Reliable and cost-effective
Technical Specifications
| Operating temperature | -10~55 ºC |
| Relative humidity, max | 5%~95 % |
| Power supply for motor | 12V / 24V |
| Consumed power of motor | 100W |
| Output shaft | 105mm (can be customized) |
| Blade length | 600-800mm (can be customized) |
| Arm length | 700-750mm (can be customized) |
| Spring tension of wiper arm | 5 +/- 1N |
| Wiping angle | 55°~ 100°(can be customized) |
| Wipe speed | 35 /45 PRM |
| Brake torque | 27N.m |
| Working torque | 14N.m |
| Protection degree | IP56 |

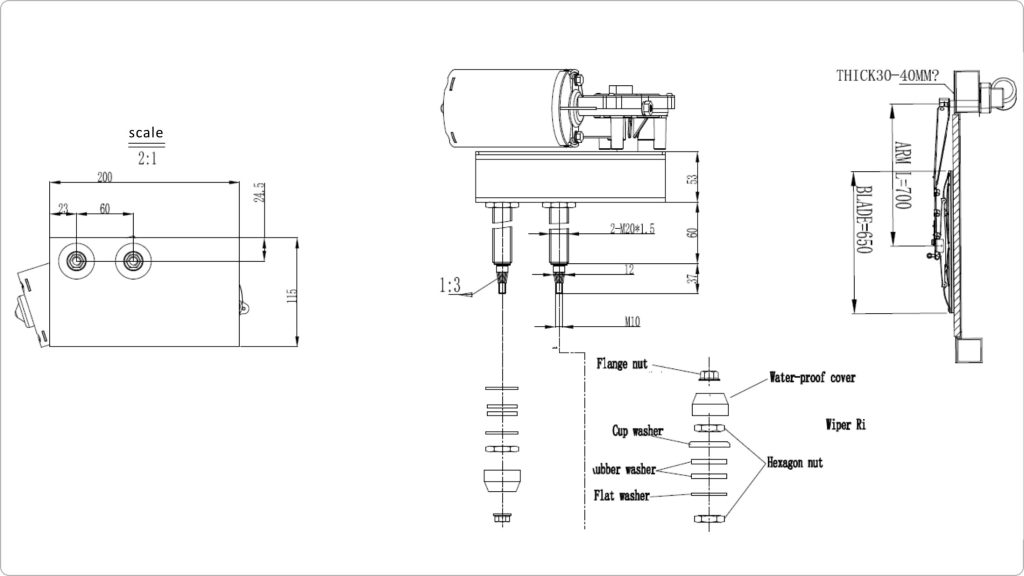

Dimension:
Notes:
The above drawing just for reference, it can be customized according to customer’s requirement.
